Battery Drain to Zero Loss: 5 Thermal Scope Mistakes Ruining Your Night Hunts

Why Does Your Equipment Lose Power Prematurely?

Power management dictates the length and success of your nighttime operations. Many shooters head into the field fully charged but find their screens turning black just as the target appears. Grasping how your unit consumes power prevents catastrophic failures in the dark.

Extreme Cold Weather Drains Batteries Fast

Lithium-ion batteries suffer severe performance drops in freezing temperatures. When you operate in harsh winter environments, the cold drastically slows down the chemical reactions inside the battery cells, tricking the device into registering a low charge. To counter this, professional systems rely on robust dual 18500 batteries that offer 4.5+ hours of continuous operation. You should always carry spare batteries close to your body heat and utilize Type-C external power support for extended stationary ambushes.

High Display Brightness Consumes Extra Energy

Modern optical tools feature a crisp 0.39-inch OLED display running at a 1024×768 resolution. Leaving a screen at maximum brightness will continue to burn through your power very quickly. Try to keep your screen’s brightness down to match your ambient lighting. Lowering the brightness will save a tremendous amount of battery power and also will prevent your pupil from constricting which will help to preserve your natural night vision when you take your eye away from the ocular lens.

Continuous Video Recording Depletes Power Reserves

Recording hours of empty woods waiting for a target wastes battery life and fills up your 64GB of built-in storage unnecessarily. Constantly writing data to the internal drive requires continuous processing power. Instead of recording manually, you should rely on smart recoil-activated recording. This function stays dormant to save power and automatically records the critical moments of your shot by detecting the kinetic energy of your rifle.

What Causes Your Rifle to Lose Zero After Firing?

Nothing ruins a hunt faster than placing the crosshairs perfectly on a target and watching the dirt kick up three feet to the left. If your zero shifts unpredictably, you are likely suffering from mechanical or structural failures caused by improper setup or inadequate gear.

Heavy Recoil Impacts Damage Internal Sensors

Your optical system houses delicate photosensitive units and microbolometer arrays. When you fire a magnum caliber rifle, the kinetic energy transfers directly into these components. If your device lacks ruggedized internal dampening, the microbolometer can physically shift, destroying your zero. High-end tactical optics prevent this by featuring robust internal chassis designs that withstand extreme impacts up to 1,500g/0.4ms, keeping your crosshairs permanently locked on the initial shooting reference point.

Inconsistent Mounting Solutions Shift Optic Positions

A premium optic performs poorly if you attach it with cheap mounting rings. Under heavy recoil, weak mounts slide along the Picatinny rail or lose their torque. You must apply the exact inch-pounds of torque recommended by the ring manufacturer and use thread-locking compounds to secure the screws. Any microscopic movement between the scope body and the rifle rail completely alters the geometric relationship between your line of sight and the barrel.

Extreme Temperature Changes Warp Metal Components

Thermal expansion and contraction affect the metal alloys in your rifle, rings, and optic housing. Moving a rifle from a heated vehicle directly into a freezing hunting blind causes the metal components to contract slightly. This physical shift can alter the torque on your mounts and change the point of impact. Utilizing equipment housed in an IP67-rated chassis that withstands extreme environmental conditions from -30°C to 55°C guarantees structural stability across all weather extremes.

How Are You Misreading Environmental Thermal Signatures?

Interpreting infrared data requires more than simply looking at a glowing screen. Any object with a temperature above absolute zero (-273.15 °C) emits infrared energy according to its temperature. Failing to read these signals correctly leads to misidentified targets and missed opportunities.

Incorrect Color Palettes Hide Crucial Details

Your display presents data using various imaging modes, primarily Black Hot, White Hot, Red Hot, and Fusion. Many hunters make the mistake of leaving the device on a single palette all night. White Hot works exceptionally well for spotting wildlife against a cold, dark background, but it can wash out details in the terrain. Switching to Black Hot often reveals more structural details of the environment, such as trees and rocks, helping you determine if a target is standing behind brush. You must cycle through palettes to match the specific contrast of your immediate surroundings.

Unfavorable Weather Conditions Mask Heat Radiation

While infrared energy cuts through complete darkness, moisture in the air acts as a physical barrier. Dense fog, heavy rain, or high humidity absorbs infrared radiation before it reaches your lens. On highly humid nights, the temperature of the environment often normalizes, reducing the contrast between a warm body and the surrounding wet foliage. You must recognize that your detection range drops significantly under these conditions, requiring you to close the distance before taking a shot.

Low Sensor Sensitivity Blurs Target Edges

The ability to separate a target from its background depends entirely on the detector’s sensitivity. If your sensor lacks the necessary refinement, targets blend into the terrain. Top-tier uncooled sensors featuring a 12μm pixel pitch deliver crystal-clear thermal imagery with <18mK NETD sensitivity. This exceptionally low NETD means the detector can capture minute temperature differences, pulling sharp edges out of the environment even when the thermal contrast is incredibly low.

Table 1: Thermal Sensor Specifications & Capabilities

Why Do Your Long-Range Shots Miss the Target?

Hitting targets consistently past 300 yards demands absolute mathematical precision. Intelligent calculation is required to map the trajectory of the projectile through high-precision algorithms, giving the correct reference mark to quickly hit the target. If you feed the computer bad data, you miss the target.

Unmeasured Initial Velocities Skew Firing Data

The instantaneous speed of the bullet from the muzzle represents the most critical variable in your calculation. Depending on the gun and ammunition, the initial velocity of the bullet will vary greatly. Relying on the velocity printed on the ammunition box leads to disastrous misses, as those numbers come from factory test barrels. You must measure the initial velocity of the bullet using professional speed measuring equipment under your specific environmental conditions.

Ignored Ballistic Coefficients Increase Drag Effects

The moment your projectile leaves the barrel, the atmosphere begins slowing it down. The ballistic coefficient is the parameter that reflects the relative efficiency of the projectile in overcoming air resistance. It acts as an important indicator for measuring the flight performance of the projectile. As the ballistic coefficient increases, the resistance effect decreases and the range increases. You can obtain this vital number from the specification sheet of the purchased bullet, or calculate it using dedicated apps.

Incorrect Baseline Heights Ruin Trajectory Math

Your optical line of sight sits in a completely different geometric plane than your barrel. Baseline height refers to the exact height difference between the optical axis of the sight and the barrel. If you guess this number, the entire ballistic curve calculation shifts. You must obtain the baseline height by precise measurement. Combining this with your zeroing distance—which systematically sets an initial shooting reference point at a suitable distance—creates the foundation for accurate long-range engagements.

Table 2: Critical Ballistic Calculation Parameters

How Can Advanced Thermal Systems Prevent Field Failures?

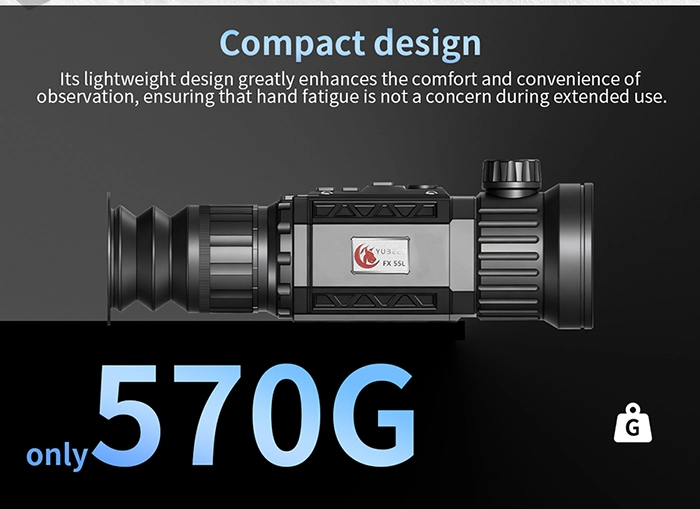

You do not need to be a professional mathematician to execute perfect shots in total darkness. Upgrading to a sophisticated unit like the  FX55LRF instantly resolves these traditional field issues. This professional-grade equipment merges optical brilliance with onboard computational power to assist you perfectly in the field.

Smart Ballistic Algorithms Automate Complex Calculations

Modern operating systems provide four distinct ballistic modes to match your skill level: Remark ballistic (low speed), Remark ballistic (high speed), Ballistic fitting, and Ballistic calculation. By selecting these modes, the system accurately calculates bullet impact points at any magnification. Real-time elevation compensation is also included, guaranteeing accurate hits from any angle without requiring you to manually crunch numbers.

Rugged Housings Withstand Extreme Recoil Forces

When deploying equipment in harsh operational environments, structural integrity prevents critical failures. Premium devices utilize rugged IP67-rated housings that protect the internal precision components from dust, moisture, and extreme temperatures. This structural housing guarantees that your delicate microbolometers and lenses survive punishing recoil impacts, maintaining your precise baseline alignment shot after shot.

Comprehensive Warranties Secure Your B2B Investments

If you supply law enforcement, military personnel, or serious hunters, you need Yubeen’s dependable aftermarket support. Professional manufacturers provide a strict two-year warranty on the entire unit. For quality issues, the company executes a replacement-only policy, completely avoiding slow repair times. Furthermore, robust OEM and ODM support is available, allowing you to establish an exclusive agency or national-level agency to dominate your local market with highly reliable, combat-ready thermal technology.

FAQs

Q: What exactly is absolute zero and how does it relate to thermal optics?

A:  Absolute zero is -273.15°C and any object at a temperature above this will emit infrared radiation at a level related to its temperature. Thermal imaging cameras detect these minute amounts of infrared radiation and create a visible image from them. This allows images to be created in any lighting condition.

Q: Why do I need to measure my baseline height?

A: Baseline height refers to the precise height difference between the optical axis of the sight and the barrel of the gun. You must input this measurement accurately into your device’s calculation system so the software can plot the correct geometric trajectory curve.

Q: Does the company support bulk orders for distribution?

A: Yes, OEM and ODM support is fully available, and the ordering process moves smoothly from sample delivery and confirmation directly into bulk orders. You can also arrange a factory visit for in-depth cooperation.
