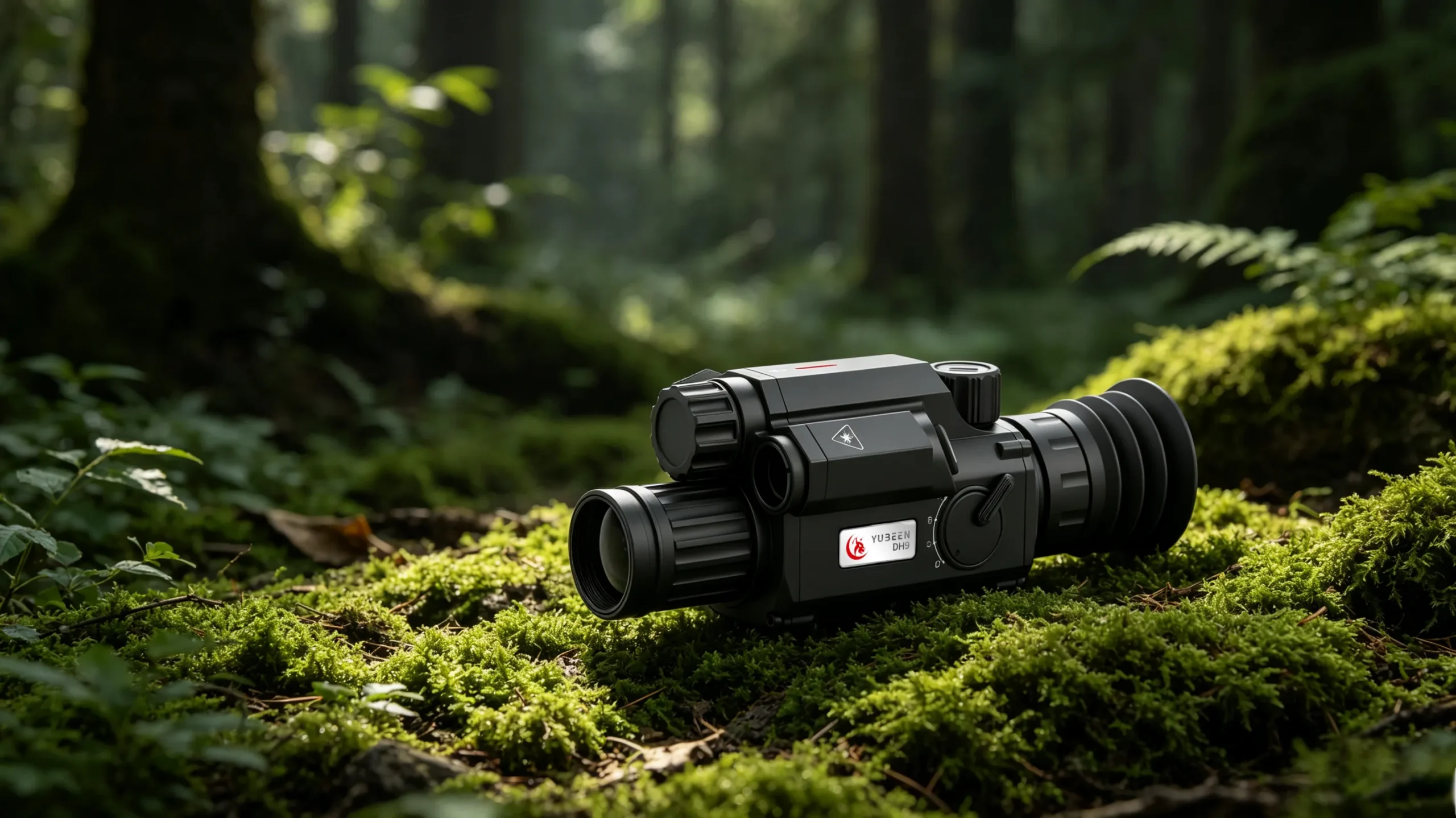

Yubeen DH9 digital day and night vision riflescope in a forest environment

DIGITAL NIGHT VISION

DH9

See Beyond Daylight.

A digital day & night vision platform for real-world observation, built for clarity when light fades.

Request a Sample Download Brochure

REAL MOMENTS

Built for What Matters.

See the DH9 in real outdoor conditions and experience how day-and-night imaging translates into the field.

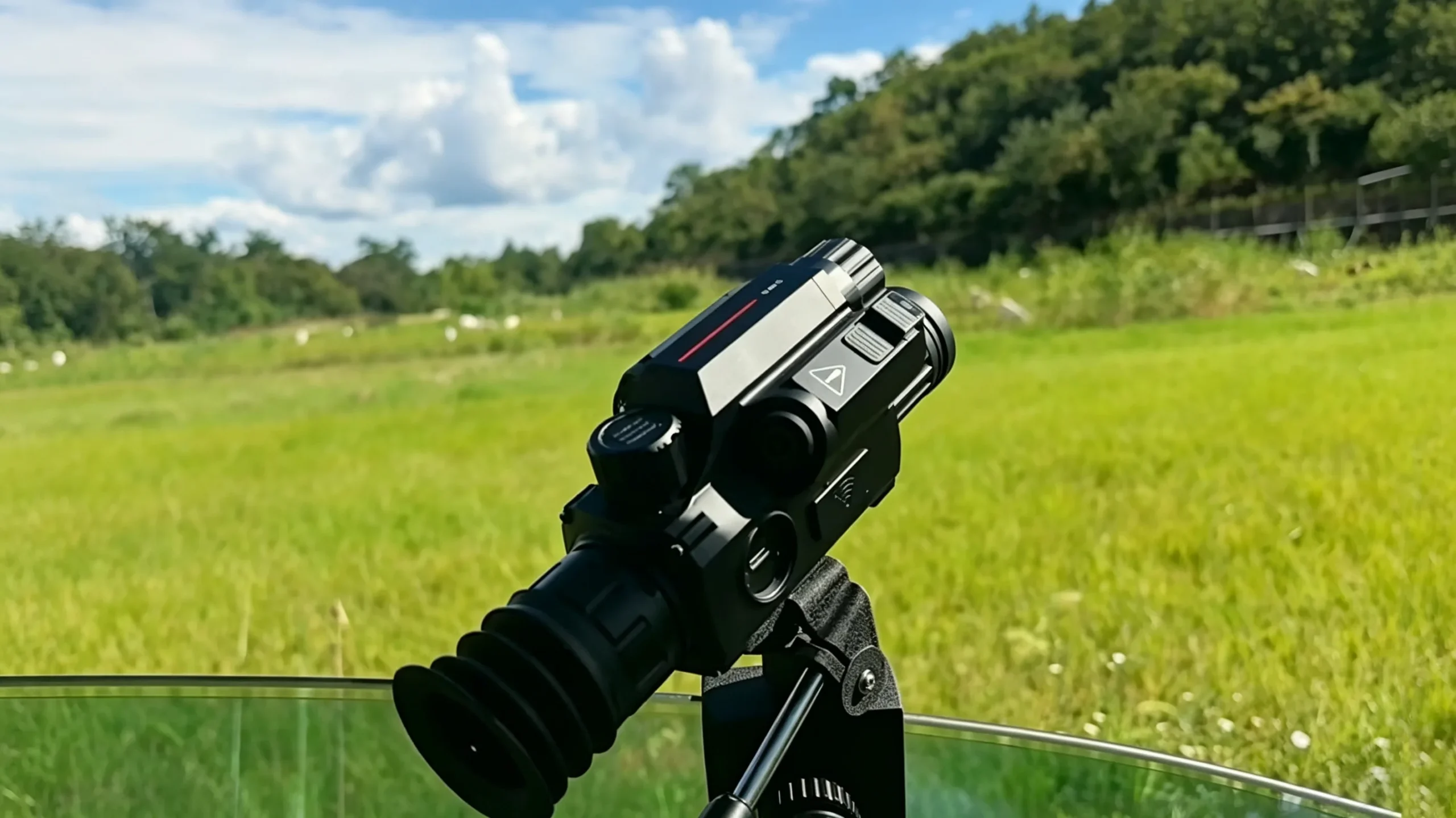

Yubeen DH9 digital night vision riflescope during outdoor field use

NIGHT VISION EXPERIENCE

From Darkness to Detail.

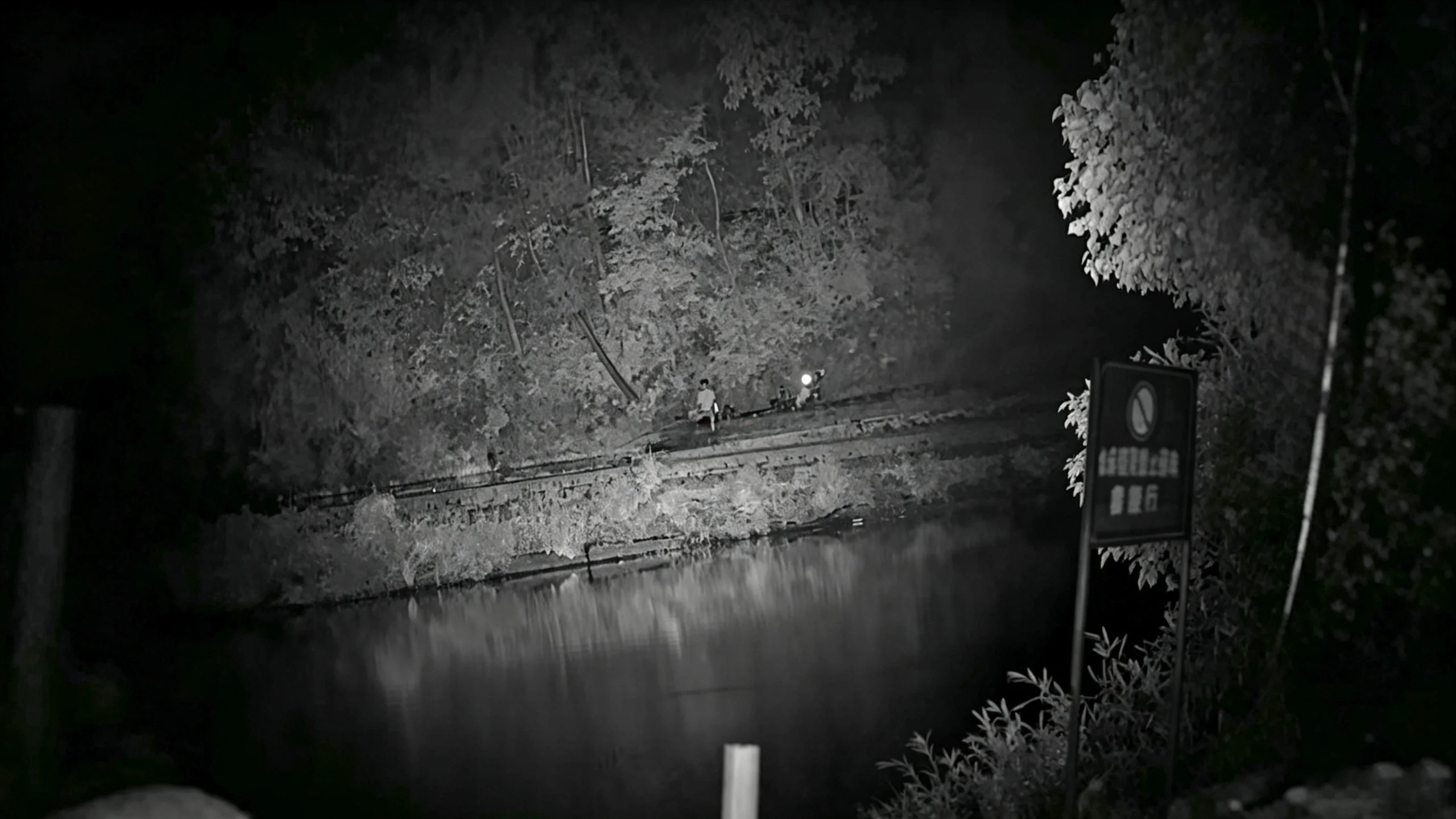

Compare the scene as it appears without night vision with the view through DH9 in the same dark environment.

Dark outdoor scene as viewed without night vision

Drag to reveal the scene

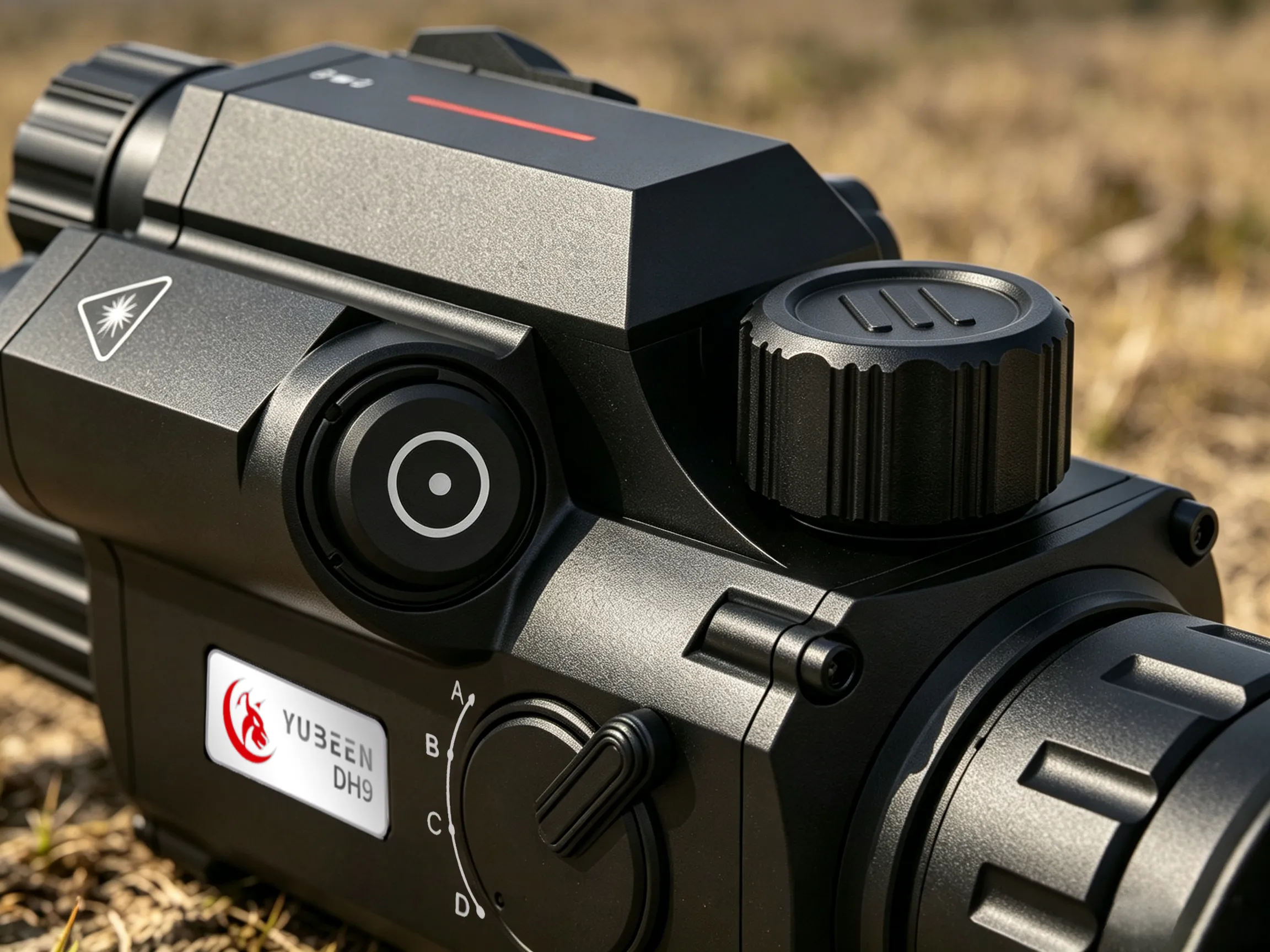

Close-up of Yubeen DH9 controls in an outdoor environment

FIELD-READY OPERATION

Built for Dependable Performance.

Precision Ranging

  • Integrated 3–1000 m laser rangefinder
  • ±1 m measurement accuracy
  • 3 m minimum ranging distance

Viewing & Recording

  • Picture-in-Picture
  • Photo, video & audio recording
  • Recoil-activated recording
  • Wi-Fi hotspot

Control & Assistance

  • Quick-Shift mode selector lever
  • Freeze Zeroing
  • Ballistic Calculator

TECHNICAL SPECIFICATIONS

The Details Behind DH9.

A complete view of the DH9 imaging, display, ranging, system, and physical specifications.

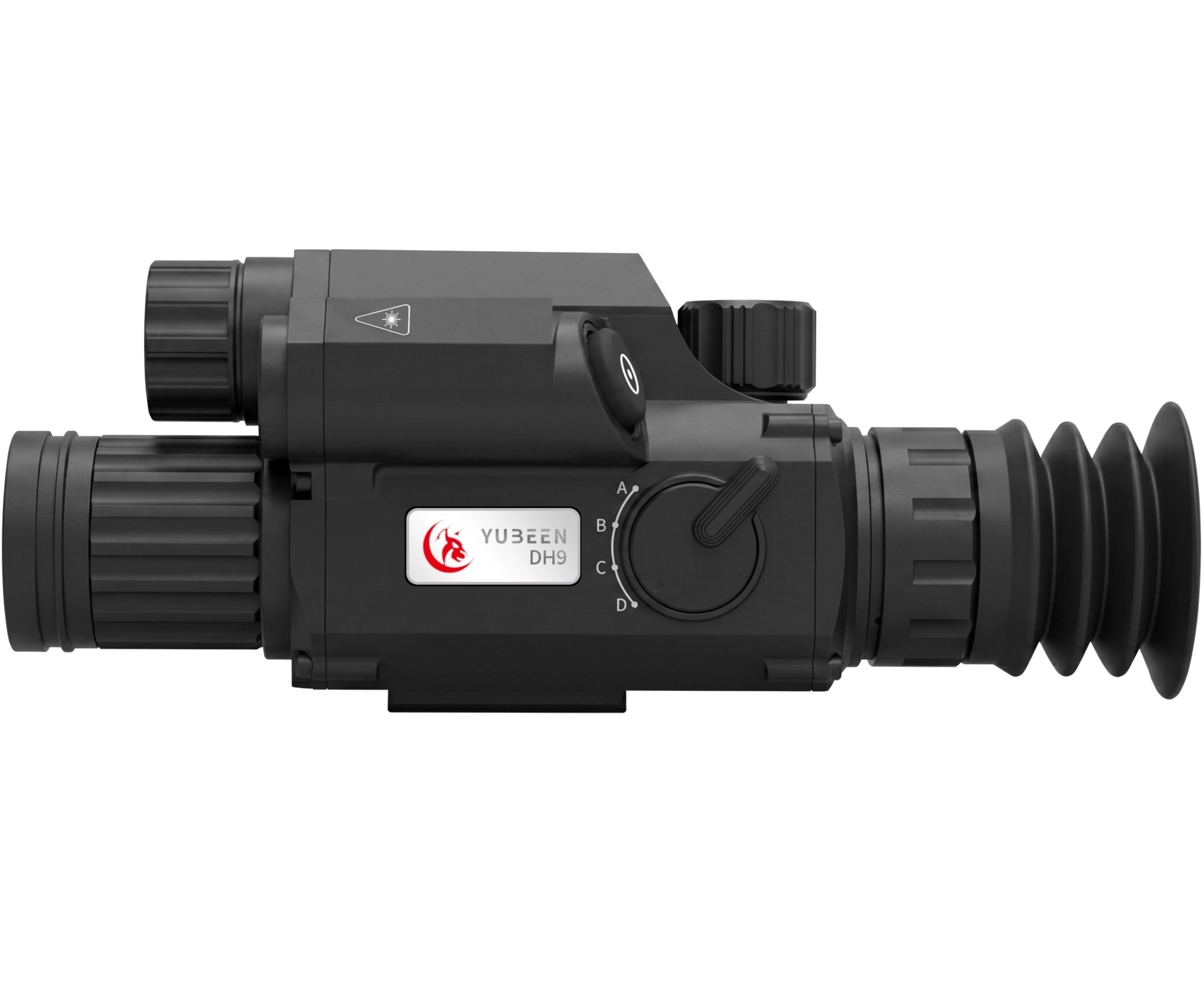

Yubeen DH9 digital day and night vision riflescope
01

Imaging & Display

Sensor
2560 × 1440 CMOS
Frame Rate
50 fps
Objective Lens
60 mm, F2.0
Magnification
4.8×–28.8×
Lossless Digital Zoom
Up to 2.3×
Display
0.49-inch AMOLED
Display Resolution
1920 × 1080
Video Resolution
1920 × 1080
Min. Focus Distance
3 m
Eye Relief
45 mm
Diopter Adjustment
-5 D to +3 D
02

System & Physical

Rangefinder
3–1000 m, ±1 m
Laser
905 nm, Class 1
Storage
64 GB eMMC
Protection
IP67
Recoil Resistance
1000 g / 0.4 ms
Dimensions
159 × 74 × 75 mm
Weight
546 g, excl. battery
Battery
1 × 21700 rechargeable battery
Operating Time
Up to 8 h
Operating Temp.
-20 °C to +70 °C
Mount
20 mm Picatinny rail mount
INCLUDED ACCESSORIES

Everything You Need, Ready in the Box.

The DH9 package includes the core accessories needed for charging, mounting, powering and setup. Explore the included items below.

11 Total Pieces Swipe / Drag to Explore
01 QTY 1

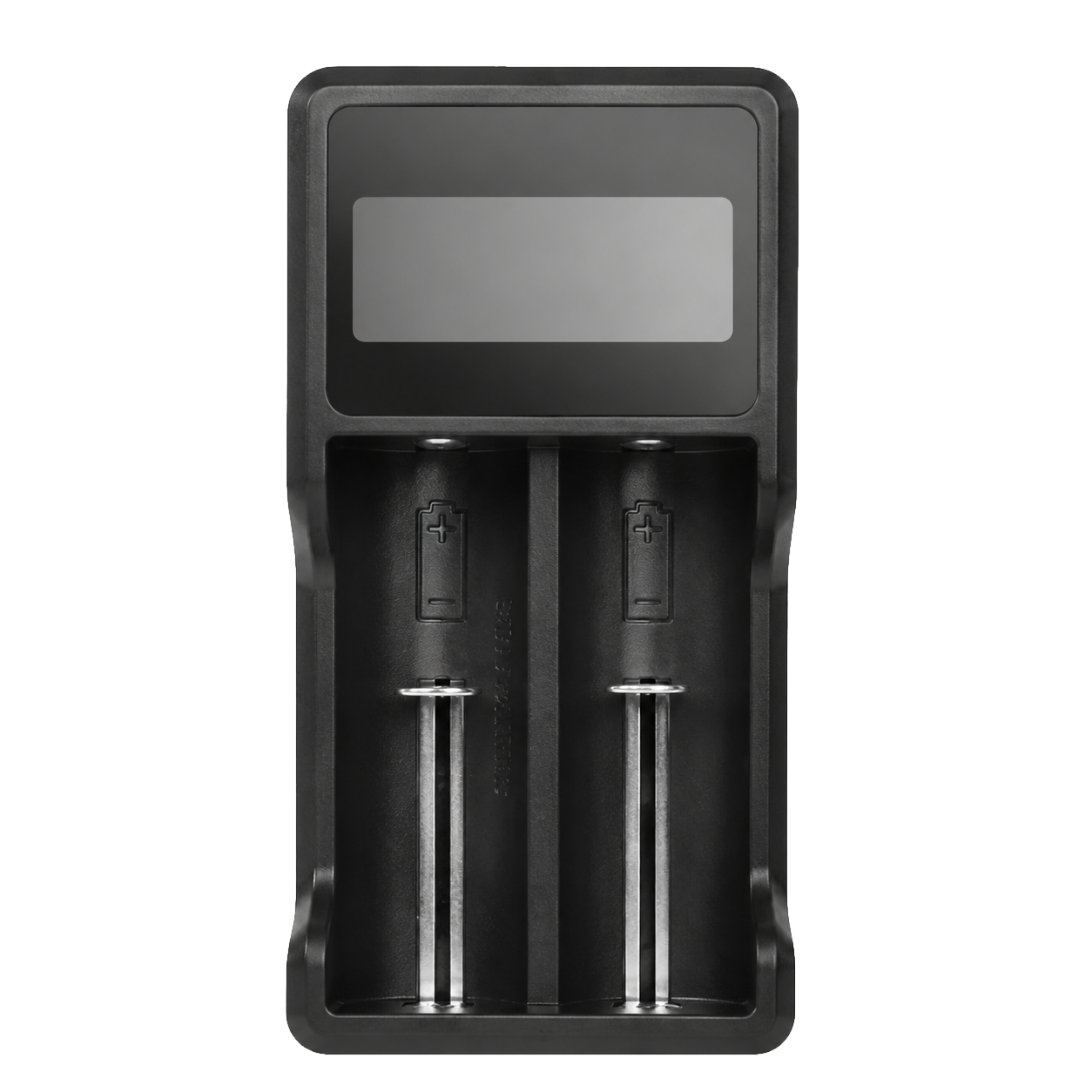

Dual-slot battery charger included with DH9

Battery Charger

Charging
02 QTY 1

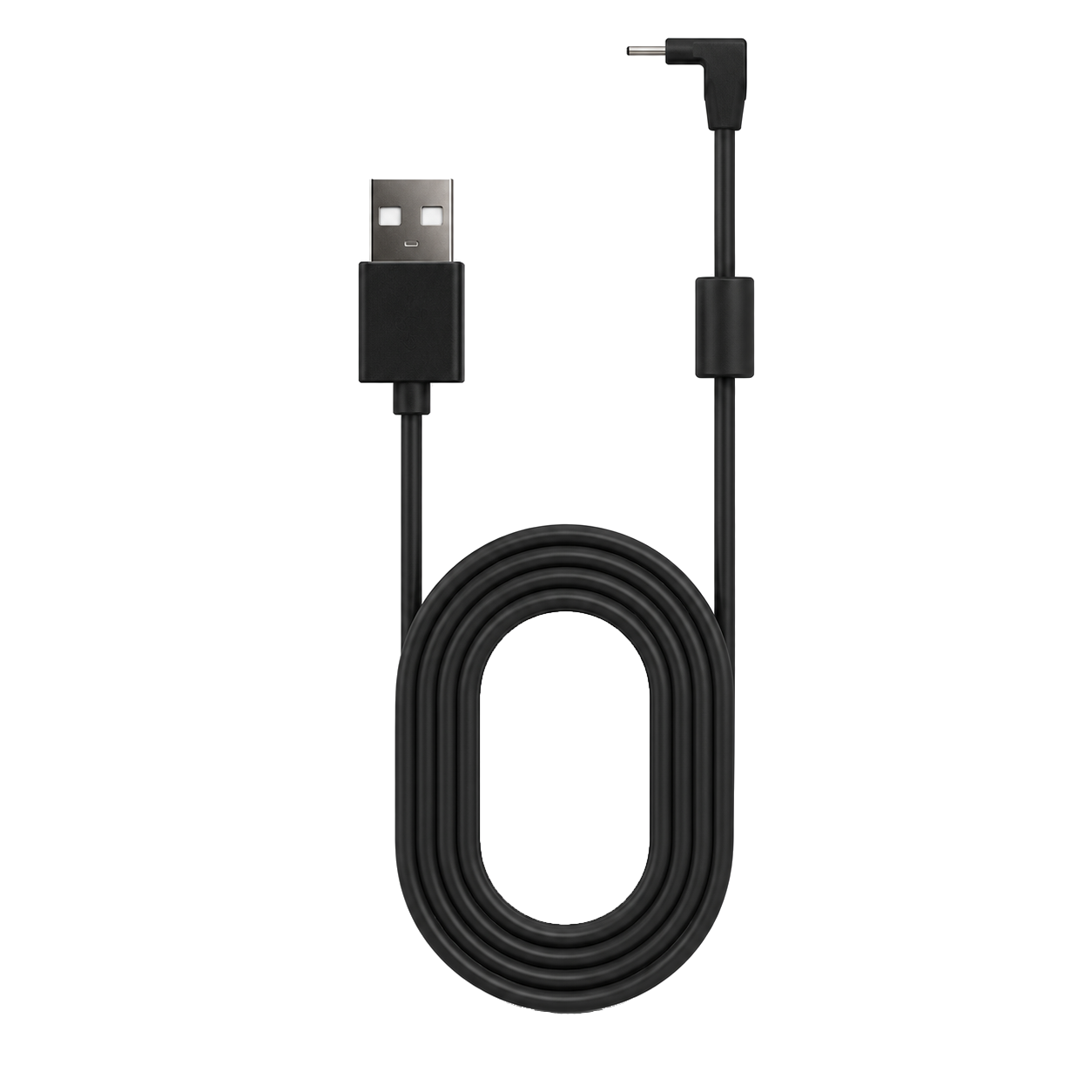

USB data cable included with DH9

Data Cable

Connectivity
03 QTY 2
Two 21700 rechargeable batteries included with DH9

21700 Rechargeable Batteries

Power
04 QTY 1

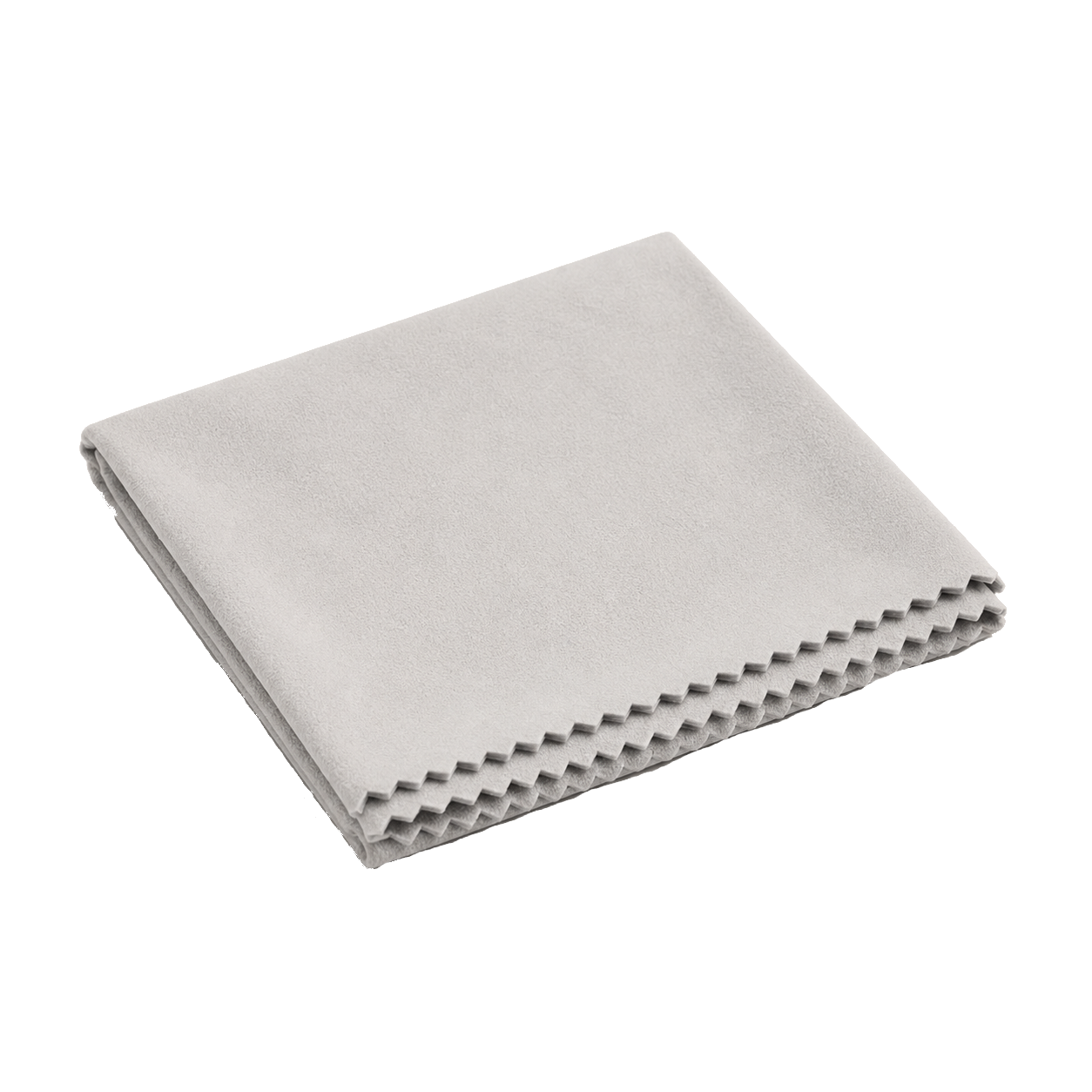

Microfiber cleaning cloth included with DH9

Microfiber Cleaning Cloth

Maintenance
05 QTY 1

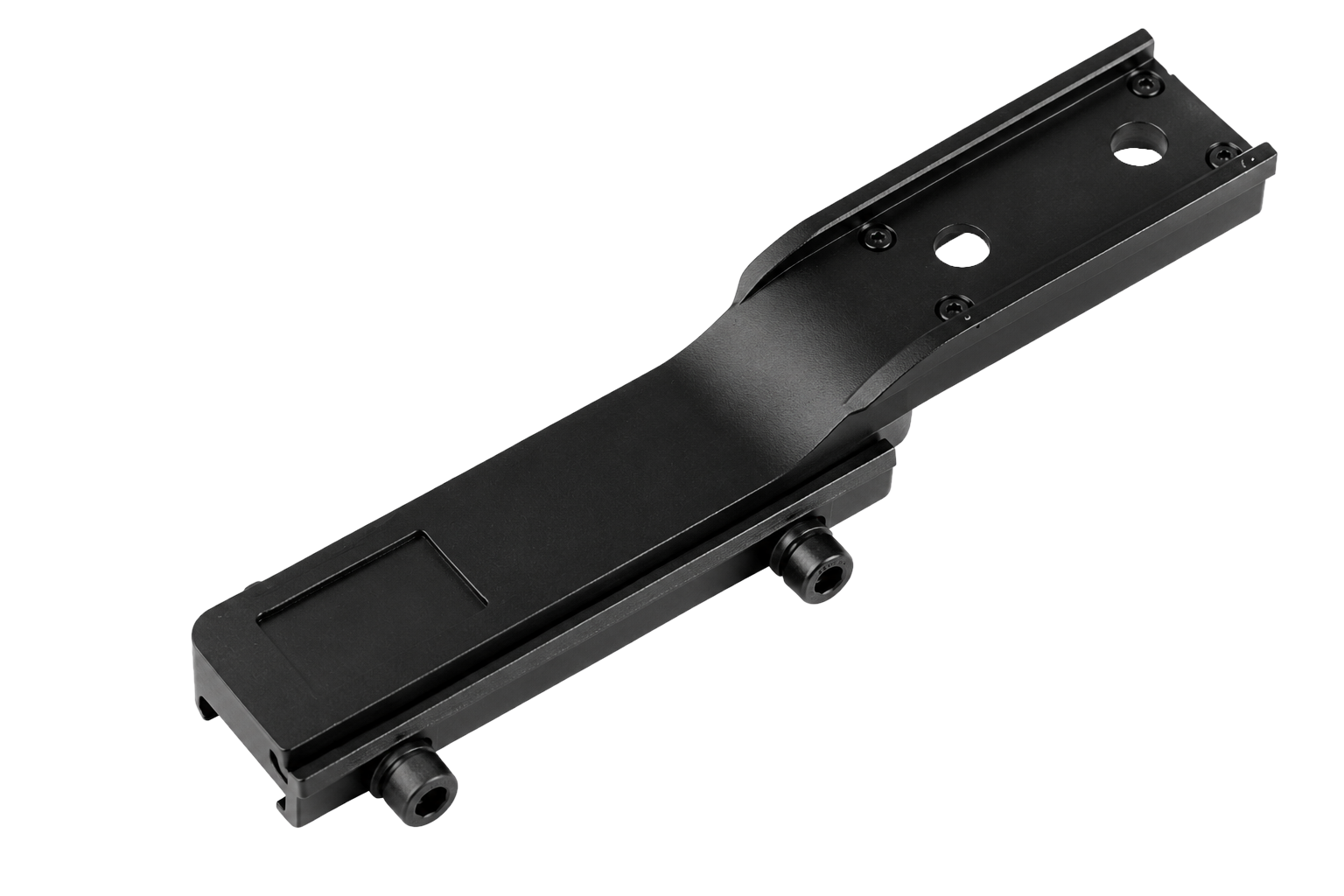

Picatinny mounting bracket included with DH9

Mounting Bracket

Mounting
06 QTY 2
Mounting screws supplied with DH9

Mounting Screws

Hardware
07 QTY 1
User manual supplied with DH9

User Manual

Documentation
08 QTY 1
Storage pouch included with DH9

Velvet Storage Pouch

Storage

A CLEARER TOMORROW

More Than Night Vision.

Explore the DH9 for your market, application, or evaluation requirements.

DISCUSS YOUR REQUIREMENTS
