Thermal Imaging Scope Attachment Installation and Calibration Guide
Thermal Imaging Scope Attachment Installation and Calibration Guide
YUBEEN thermal clip-ons revolutionize hunting and tactical operations by enhancing day scopes with advanced thermal imaging. Lightweight, durable, and easy to install, these devices maintain your optic’s zero while adding night vision capabilities, making them ideal for versatile, high-performance use in diverse conditions.
YUBEEN and Thermal Scope: What Makes Thermal Clip-Ons a Smart Upgrade for Your Day Scope?
Why Choose a Thermal Clip-On Instead of a Dedicated Thermal Scope
Thermal clip-on tools provide a handy and budget-friendly option for those who already have top-notch day scopes and wish to use them at night or in dim settings. Unlike a standalone Thermal Scope, which fully takes the place of your current gear, clip-ons simply attach to the front of your existing scope. This way, they keep your original aim and zoom settings intact. You get to stick with the familiar feel of your daytime setup while adding the bonus of thermal vision.
Moreover, thermal clip-ons tend to be more flexible and easy to carry around. Take the ET35 thermal imaging, for instance. It can spot things from as far as 1,800 meters away and weighs just 530 grams. This light build makes it perfect for both hunting trips and tactical missions without adding much weight or bulk to your equipment.
How a Clip-On Enhances Your Existing Optics Without Replacement
One big plus of a thermal imaging scope add-on is how smoothly it blends with your current rifle gear. It fits right in front of your day scope, so you don’t lose your original aiming marks or ballistic tweaks. There’s no need to reset or adjust your optics when moving from day to night use.

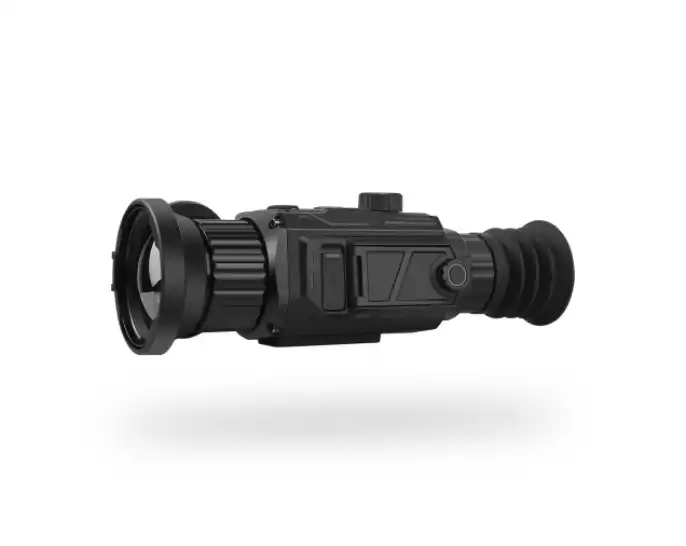

For example, the ET50 thermal imaging comes with recoil-triggered recording and five different zeroing setups. Once it’s properly attached, you can flip between these options without worrying about losing precision. This feature makes clip-ons a great pick for rifles used in varying light conditions.
The Benefits of Maintaining Daytime Functionality While Gaining Thermal Vision
Thermal clip-ons let shooters keep all the perks of their daytime optics, like clear glass, tailored turrets, and a familiar feel, while also adding strong thermal abilities. This mix of functions is super important for hunters and tactical folks who need to switch easily from tracking in daylight to engaging targets after dark.
Devices such as the DT50L come with neat triple-mode ballistic systems (Remark Ballistic, Ballistic Calculation, Ballistic Fitting). These help ensure accurate shots even in total darkness. With extras like Picture-in-Picture (PIP), Digital Detail Enhancement (DPC), and auto hotspot tracking, users can stay aware of their surroundings while locking onto targets at night.
How Do You Select the Right Thermal Imaging Attachment for Your Needs?
Key Factors to Consider Before Purchasing a Clip-On Device
Picking the best thermal clip-on means looking at a few important points:
-
Sensor Clarity & NETD: A sharper sensor with a low Noise Equivalent Temperature Difference (NETD) gives better pictures. For example, the ET35 has a 384×288 resolution sensor with less than 18mK NETD sensitivity.
-
Lens Size & Viewing Range: Bigger lenses can detect farther but show a smaller area. The ET50’s 50mm lens can spot things up to 2,600 meters away.
-
Screen Quality: High-resolution OLED screens make images clearer. Most YUBEEN models feature a 0.39-inch OLED display with 1024×768 resolution.
-
Battery Duration & Power Choices: Look for gear that lasts long with built-in batteries or external power support.
-
Toughness: Choose devices with IP67-rated covers that can handle rough weather and tough conditions.
Why YUBEEN Offers a Reliable Solution for Versatile Field Use
YUBEEN Optical Instruments Co., Ltd. is a high-tech company focused on creating, making, and selling thermal imaging scopes and optical sights. Their products are built for top performance while still being easy to use for everyone.
What makes YUBEEN stand out is its smart ballistic system made for beginners. As they say, “With our ballistic modes, even if you’re not very skilled, new players can handle it easily and become top shooters.” This means even those new to shooting can hit their mark without needing to know complex details about ballistic settings or zeroing ranges.
How Can You Install a Thermal Imaging Attachment Correctly?
Step-by-Step Mounting Process for Optimal Alignment
-
Check Compatibility: Make sure the thermal clip-on fits your day scope’s size and mounting style.
-
Secure the Front Mount: Use the right locks to keep everything steady and aligned.
-
Match the Optical Axis: Adjust carefully so both devices line up perfectly.
-
Tighten Screws Evenly: Uneven tightening can mess up the alignment.
-
Turn On & Check Image Center: Confirm your aiming mark stays in the middle of the thermal screen.
YUBEEN tools are crafted with strong mounting setups that can handle recoil shocks up to 1,000g/0.4ms. This ensures they stay steady even during heavy use.
What Calibration Steps Ensure Accurate Target Acquisition?
Zeroing Procedures After Attaching the Thermal Device
Once the device is mounted, check its accuracy with zeroing steps:
-
Pick one of the five zeroing profiles offered in most YUBEEN models.
-
Shoot test rounds at known distances.
-
If needed, tweak the digital aiming mark using the built-in menu options.
These steps make sure the point of impact stays the same between your day scope and the thermal layer.
Fine-Tuning Image Settings for Environmental Conditions
Thermal results can change based on the surrounding heat and moisture levels. Here’s what to do:
-
Pick the right imaging mode, like Black Hot, White Hot, or Fusion.
-
Adjust brightness and contrast by hand based on the background area.
-
Turn on DPC (Digital Detail Enhancement) when in messy or busy surroundings.
The ET35L comes with real-time angle adjustment, which shifts the aim based on slopes. As noted, “It also includes real-time pitch angle correction, letting users hit accurately from any angle.” This boosts precision on all kinds of ground.
What Common Mistakes Should You Avoid During Setup?
Misalignment Issues That Affect Accuracy and Field of View
Wrong mounting can lead to errors in aim or blurry images. Always double-check the setup before heading out. Compare visible landmarks through both devices at different distances to make sure everything lines up.
Overlooking Battery Life or Power Supply Management in the Field
Many issues in the field happen because of dead batteries or poor power planning. Gear like the ST35L lasts over 6 hours on one battery and supports Type-C external power. This is a must-have for long hunts or missions.
Failing to Recheck Calibration After Extended Use or Transport
Even sturdy systems might shift a bit after being moved due to bumps or shakes. Always do a quick calibration check before important tasks to keep your aim true.
Why Is YUBEEN an Ideal Choice for Long-Term Use?
Military-Grade Precision Meets Everyday Reliability in Their Product Lineup
The DT50L mixes cutting-edge heat detection with full ballistic calculation features. With recoil strength up to 1,500g/0.4ms and IP67 weather protection, these tools meet tough demands while still being useful for regular folks in hunting or watching tasks.
Their sensors work at top-notch levels (less than 18mK NETD), giving clear pictures even with tiny heat differences. This is a huge help during early morning or evening when animals are most active.
Designed for Professionals, Accessible to Enthusiasts Like You
As YUBEEN states, “Our unique ballistic notes mean users don’t need to be experts to enjoy a better hunting trip. Once set, it calculates bullet drop accurately at any zoom level.” This opens up advanced tech to everyone by cutting out the usual tricky parts of thermal ballistic systems.
YUBEEN also offers great customer help with options for OEM/ODM custom builds and exclusive country-wide dealerships. They note, “We support OEM and ODM, as well as exclusive or national-level partnerships.” This ensures flexible, long-term ties for all kinds of users.
FAQ
Q1: Can I use my usual scope reticle with a YUBEEN clip-on?
A: Yes, YUBEEN clip-ons attach in front of your day optic without changing its insides or reticle spot.
Q2: Do I need special training to use ballistic features?
A: No, the system has four AI-powered modes like Remark Ballistic (low/high speed), Ballistic Calculation, and Fitting. These need no technical know-how from users. As they explain, “Our system doesn’t require details like BC value, baseline height, starting speed, or zeroing distance to smartly figure out bullet drop.”
Q3: Are these good for harsh weather?
A: Definitely. All main models have IP67-rated cases that can handle -30°C to +55°C without losing performance or image sharpness.
